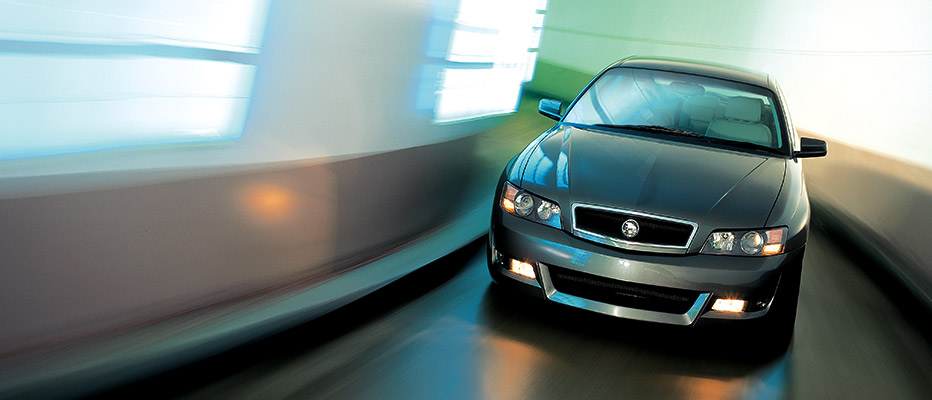

vy grange

VY / Grange

The agility and responsiveness in a car this spacious, this luxurious, this well-equipped, defies belief. The mere presence of the long wheelbase Grange brings a sense of occasion to any journey.

Brakes Standard Option
HSV performance brake system with larger 330 x 32mm ventilated and grooved front discs with upgraded HSV embossed front calipers and pads,315 x 18mm ventilated and grooved rear discs, silver finish front and rear hubs.
Cabin Standard Option
HSV fully-lined luggage compartment with luggage net
HSV fire extinguisher
HSV embossed remote keypad central locking system
HSV Grange floor mats
HSV alloy sill panels
Driver Standard Option
HSV leather-bound steering wheel with height and reach adjustment
Leather-trimmed automatic shift grip
Electrochromatic self-tinting rear view mirror
Trip computer digital display
Dash indicator for auto transmission selector and traction control
Engine Standard Option
HSV LS1 285kW (292kW DIN) @4800 rpm/510Nm (PULP)
HSV 285kW engine cover
HSV ‘Ram Air’ type cold air intake
Knock sensors enable engine to run on ULP
Sequential multi-point port fuel injection
WK rear muffler
cast steel roller rocker arms
roller cam followers
eight coil pack ignition
cross-bolted five main bearings 6 bolts per bearing cap
Exhaust Standard Option
Exterior Standard Option
3 element projector headlights
Unique WK Grange fully-integrated exterior styling body-kit package
HSV Grange grille and wide lower air intake
Front, side and rear body skirts
Rear deck lid spoiler with integrated stop lamp
Rear Appliqué/décor panel
Front Fog/ Cornering lamps
- Exterior Paint Colours Quicksilver
- Syracuse
- Vesper Blue
- Turbine Grey
- Heron White
- Phantom Black
- Berry Red
- HSV Unique Exterior Paint Colours HSV Racing Green
Handling Standard Option
Specific rack and pinion power steering
Fully independent rear suspension
HSV Prestige coordinated suspension components for long wheelbase luxury ride and sports handling balance
HSV Prestige variable-rate front and rear coil springs with multilink
HSV Prestige front and rear Sensatrac variable rate dampers for smooth ride control and firm high speed stability
HSV lowered ride height
HSV Prestige Level-Ride rear self-leveling suspension
HSV 28mm front anti-roll bar, 16mm rear anti-roll bar
Wheels Standard Option
HSV WK Grange 8 X 18 inch alloy wheels
HSV specification premium Bridgestone 235/40 ZR18 S03 directional tyres
HSV wheel lock nuts
Space-Saver temporary spare wheel and tyre
Options Standard Option
Sunroof
Satellite Navigation
19” ‘Prestige’ wheel
Performance Standard Option
Safety Standard Option
Seating Standard Option
HSV Prestige seats with active head restraints & DVD screens, 8-way electric adjustable driver’s and passenger’s seat (driver’s with 3 position memory)
HSV Grange-embossed seat trim logos
HSV driver and passenger lumbar support
Security Standard Option
Holden Assist personal security
HSV DNA featuring individual Vehicle Identification Number
HSV third generation ’ESS’embedded security system and immobiliser
Sounds Standard Option
Blaupunkt Premium 430 Watt Sound System with 6-stack in dash CD player, and remote control, 12 speakers, including sub-woofer
Storage Standard Option
Transmission Standard Option
Heavy Duty HZD Turbo Hydra-Matic 4-speed electronic automatic transmission
HSV Traction Control with limited slip differential
HSV Sports final drive ratio 3.07:1
Standard      Optional

2013: GEN-F

2013: GEN-F

Launched in May, 2013, the HSV GEN-F range of vehicles was the greatest range of performance production cars ever built in Australia.

In addition to the ground-breaking GTS, powered by a 6.2 litre Supercharged LSA V8 delivering 430 kilowatts of power and 740 Newton-metres of torque, the range received the most significant styling makeover since E-Series including new front and rear fascia’s, tail-lamps, wheels and spoilers.

*Vehicle shown with R8 SV option/s

2010: E Series 3

2010: E Series 3

The HSV E Series 3 range of vehicles was launched in September, 2010

The result, an all new interior across the range and the introduction of a range of new technologies including an Enhanced Driver Interface, Liquid Propane Injection and Side Blind Zone Alert. In 2012, HSV re-introduced the ClubSport and Maloo into the range.

* Vehicle listed is a MY12.5 variant

2009: E Series 2

2009: E Series 2

E Series 2 was launched in 2009 and featured a substantial design update of the existing E Series model range.

Along with the introduction of Daytime Running Lamps, a range of other “Australian firsts” included Competition Mode ESC, 20 x 8.5 inch front wheels and Intelligent Launch Control. The range included ClubSport R8, ClubSport R8 Tourer, Maloo R8, GTS, Senator Signature and Grange.

2006: E Series

2006: E Series

The E Series journey began with a blank canvas and a mission statement to redefine every aspect of world-class performance car design.

The boundaries of product investment, testing and development were taken to unprecedented new levels. So the quest began to create the most powerful, technologically advanced and dynamic range of vehicles to date.

The result was a total of 301 end-to-end exclusive HSV modifications, including 307kW of power output, 550Nm of torque, a sports-tuned Electronic Stability Control system and the revolutionary Magnetic Ride Control suspension technology.

2004: VZ

2004: VZ

The HSV Z Series range was launched in October 2004 and featured the new, 297kW LS2 V8 engine in all models.

The range included a limited edition SV6000, of which just 50 were built, and the Maloo R8 which was crowned the “World’s Fastest Ute”, clocking an average speed of 271.44 km/h (168.7 mph) in the Federal Government’s Woomera Prohibited Area in outback South Australia.

2003: VY2

2003: VY2

Prominent with the launch in September 2003 of the Y Series 2 was the ClubSport R8 with its distinctive performance and sporty style.

It featured some very desirable new standard features – full leather upholstery, 19-inch wheels, Pirelli tyres and Performance suspension. HSV’s performance flagship, the GTS, also made a return along with the HSV GTO Coupe and HSV Coupe 4.

2002: VY

2002: VY

The launch of the Y Series ushered in a new era of sophistication

The Y Series range displays suave interior and exterior styling and high quality materials, including polypropylene injection moulded body components and the use of premium fabrics and leathers.

2000: VX

2000: VX

In October, 2000, HSV launched the VX Series.

The VX Series delivered an optimum level of styling distinctiveness and differentiation from the Holden Commodore, along with additional power from the LS1 engine. The range featured, among other models, an HSV VX Maloo, GTS and Limited Edition HSV VX Senator 300.

1997: VT

1997: VT

The VT Series was based on an all new body design and was the last series to feature the Australian 5.0 litre and 5.7 litre V8 engines.

The range included, amongst others, the Senator Signature Wagon, GTS and a range of 10th Anniversary limited edition models.

1995: VS

1995: VS

In April 1995, HSV launched the new generation VS range, which at the time, represented the pinnacle of Australian sports motoring.

From the powerful Manta to the sophistication of the Grange, there was a combination of style and performance that left little to the imagination. The VS series saw the introduction of an Integrated Security System (ISS) incorporating a microprocessor-controlled immobiliser. Models within the range included the HSV VS ClubSport, HSV VS Senator and HSV SV Manta.

1993: VR

1993: VR

With the release of the VR Series, and after considerable design and tooling investment, HSV confirmed its place as Australia’s leading niche manufacturer of world-class performance vehicles.

The range received a significant face-lift including the standardisation of ABS and IRS. Models within the range included, the HSV VR ClubSport, HSV VR Senator 215i and HSV VR GTS.

1992: VP

1992: VP

The HSV VP Series was launched in October 1991 and featured major mechanical upgrades, a re-styled body design and the introduction of six new exterior colours.

Independent Rear Suspension also became available on selected short wheelbase models. Vehicles in the range included the HSV VP ClubSport, HSV VPSV91 and a range of limited edition 5th Anniversary vehicles.

1990: VG

1990: VG

The VG series saw an all new HSV model introduced, the HSV VG Maloo, which was HSV’s first ever production utility.

Available in just Maranello Red and Alpine White, just 132 of these models were built and they featured a 180kW V8 engine and 16 x 7.0J x wheels.

1989: VN

1989: VN

The HSV VN Series was launched in August 1988 with a completely new body design and engines.

The standard engine was a V6 with fuel injection, while the standard V8 engine also featured fuel injection. Models within the range included the HSV SV89, which featured a 180kW engine, and the HSV VN SS Group A SV with a whopping 215kW of power.

1988: VL

1988: VL

The VL series holds a special place in HSV’s history with the SS Group A being the vehicle which launched the HSV brand.

Other models in the series include the HSV VL Calais SV88 and the HSV VL F20 SV.
